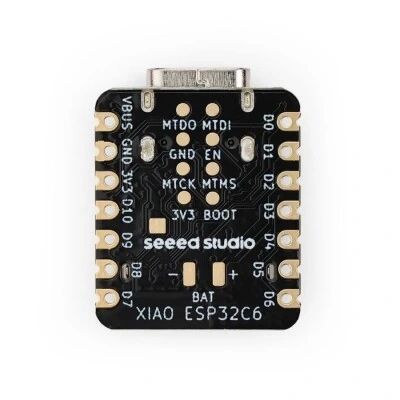

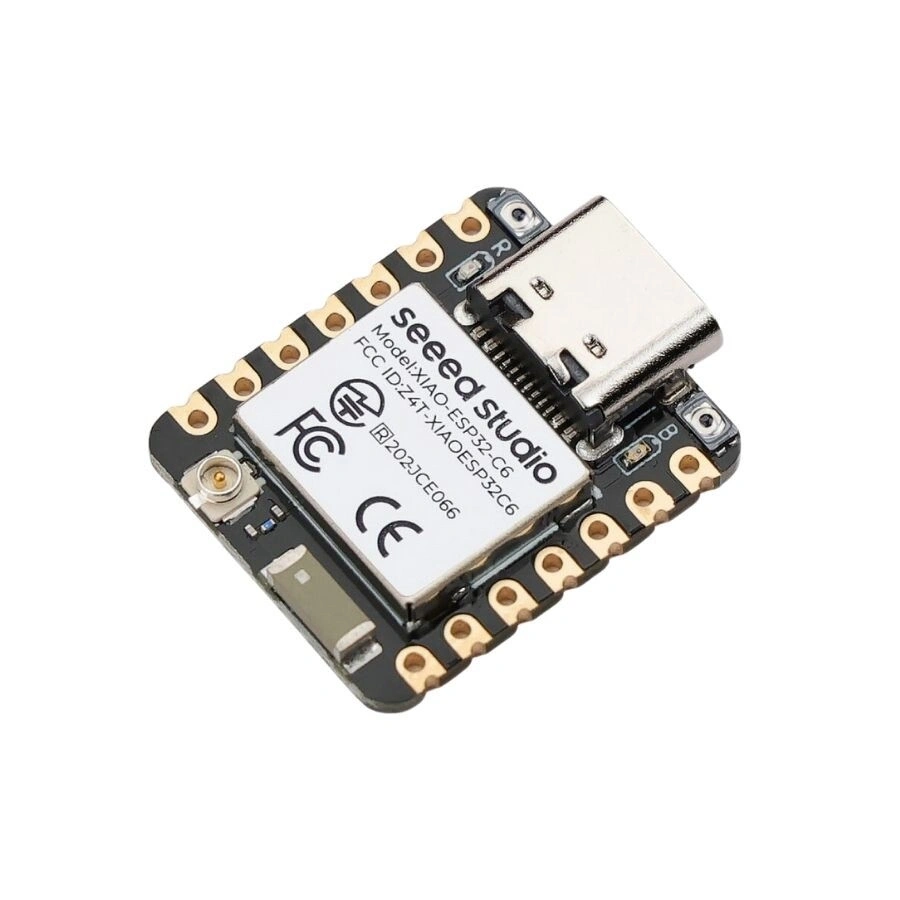

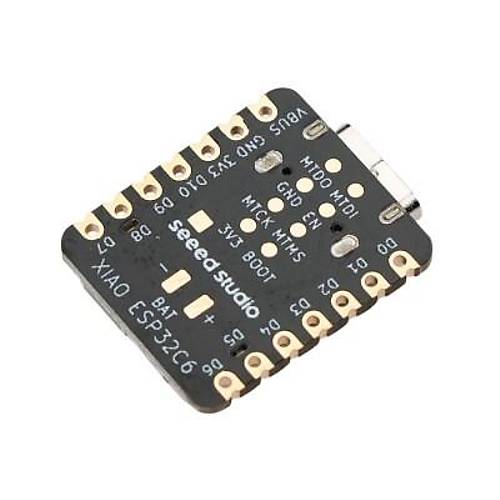

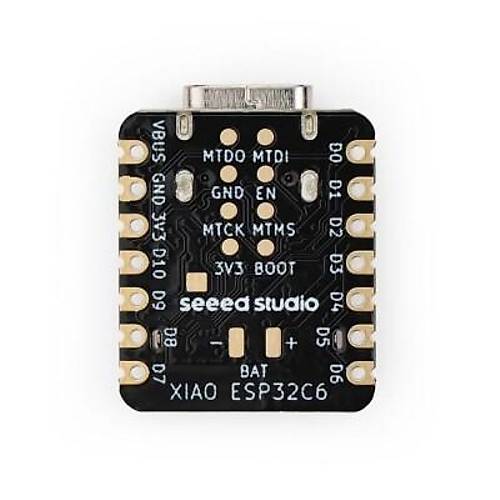

XIAO ESP32-C6 Geliştirme Kartı

Product

XIAO ESP32C6

XIAO ESP32C3

XIAO ESP32S3

Processor

Espressif ESP32-C6 SoC

Espressif ESP32-C3 SoC

Espressif ESP32-S3R8

two 32-bit RISC-V processors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz

RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz

Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz

Wireless

Complete 2.4GHz Wi-Fi 6 subsystem

Complete 2.4GHz Wi-Fi subsystem

Complete 2.4GHz Wi-Fi subsystem

BLE: Bluetooth 5, Bluetooth mesh

Zigbee,Thread,IEEE 802.15.4

                     /

                      /

On-chip Memory

512KB SRAM & 4MB Flash

400KB SRAM & 4MB Flash

8M PSRAM & 8MB Flash

Interface

1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO

1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC

1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED

1x Reset button, 1x Boot button

Dimensions

21 x 17.8mm

Power

Input voltage (Type-C): 5V Input voltage (BAT): 4.2V

Circuit operating Voltage (ready to operate):

- USB:5V@9mA

- BAT:3.8V@9mA

Charging battery current: 100mA

Power Consumption Model

(Supply Power: 3.8V)

Modem-sleep Model: ~ 30 mA

Light-sleep Model: ~ 2.5 mA

Deep Sleep Model: ~ 15 ?A

Modem-sleep Model: ~ 24 mA

Light-sleep Model: ~ 3 mA

Deep Sleep Model: ~ 44 ?A

Modem-sleep Model: ~ 25 mA

Light-sleep Model: ~ 2 mA

Deep Sleep Model: ~ 14 ?A

Working Temperature

-40°C ~ 85°C

-40°C ~ 85°C

-40°C ~ 65°C
